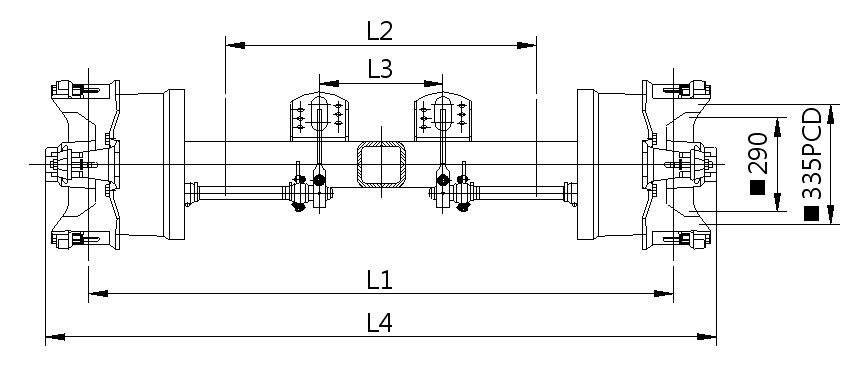

German Type Axle Spoke wheel axle Model Capacity Brake Axle Beam Track Bearing Leaf Spring Brake Stud P.C.D. H Total Length Weight Wheel Appliable WKD1201LF 12 S420×180 □150 1840 33118 33213 ≥980 392 6-M20×2 130-20 ≈2150 ≈462 Spoke wheel 8.0-20 WKD1202LF 12 S420×200 □150 1840 33118 33213 ≥980 375 6-M20×2 130-24 ≈2150 ≈450 Spoke wheel 8.5-24 WKD1203LF 12 S420×180 □150 1840 33118 33213 ≥980 392 6-M20×2 130-24 ≈2150 ≈462 Spoke wheel 8.5-24 WKD1401LF 14 S420×200 □150 1850 32219 33215 ≥900 245 6-M20×2 147-24 ≈2170 ≈522 Spoke wheel 8.5-24 WKD1401LF1 14 S420×200 □150 1840 33215 32219 ≥900 353.6 6-M20×1.5 147-24 ≈2200 ≈522 Spoke wheel 8.5-24 WKD1402LF 14 S420×200 □150 1815 32219 33215 ≥900 245 6-M20×2 147-20 ≈2170 ≈522 Spoke wheel 8.0-20 WKD1601LF 16 S420×200 □150 1840 32222 32314 ≥900 243 6-M20×2 147-24 ≈2150 ≈566 Spoke wheel 8.5-24 WKD1601LF1 16 S420×200 □150 1835 32222 32314 ≥900 243 6-M20×2 147-24 ≈2150 ≈566 Spoke wheel 8.5-24 WKD1602LF 16 S420×200 □150 1840 32222 32314 ≥900 243 6-M20×2 147-20 ≈2150 ≈566 Spoke wheel 8.0-20 WKD1801LF 18 S420×220 □150 1840 32222 32314 ≥900 243 6-M20×2 147-24 ≈2150 ≈580 Spoke wheel 8.5-24
Center Distance
Chamber Distance
