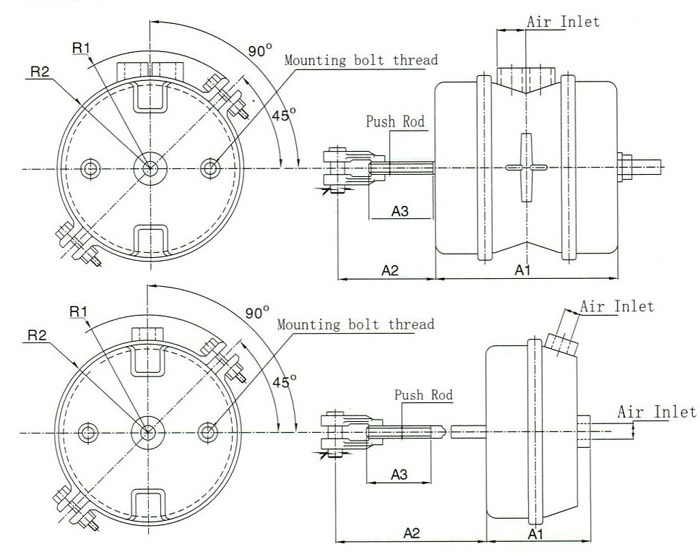

产品型号
PRODUCT MODEL
 		 安装螺栓尺寸
The erection bolt size		 接口
CONNECTION		 连接叉
connects		 推杆
throwut lever		 a b 工作行程
storke
  A    B C M L1 L2
  T20 120.7 2-M16X1.5 40 z1/4 14.50 12 M16X1.5 271 239 / 90° 59
  T24 120.7 2-M16X1.5 34 z1/4 14.50 12 M16X1.5 252 220 / 90° 59
  T24-A 120.7 2-M16X1.5 38 z1/4 14.50 12 M16X1.5 233 201 / 90° 62
  T30-A 120.7 2-M16X1.5 　 2-z1/4 14.50 12 M16X1.5 277 235 0° 45° 67
  T36 120.7 2-M16X1.5 40 2-z3/8
Hole trap		 15.00 12 M16X1.5 294 261 0° 90° 72
  24/24-A 120.7 2-M16X1.5 40 2-M16x1.5 15.00 14 M14X1.5 42/A POLE FORK BODY
THE RELEASE TIGHTENS		 　 0° 0° 57
  24/30-A 120.7 2-5/8-11unc 38 2-z3/8 14.50 12.5 5/8-18UNF 308 277 90° 0° 61
  30/30 120.7 2-M16X1.5 38 2-z3/8 14.50 12.5 M16X1.5 330 300 90° 0° 62
  30/30-A(US standard) 120.7 2-5/8-11unc 37 2-z3/8 14.50 12.5 5/8-18UNF 328 298 90° 0° 62
  T24/24 120.7 2-M16x1.5 40 2-M16x1.5 14.50 12 M16x1.5 255
THE RELEASE TIGHTENS		 230 0° 90° 62
  T20/24 120.7 2-M16x1.5 43 2-M16x1.5 14.50 14 M16x1.5 300
THE RELEASE TIGHTENS		 247 0° 45°
Front cavity
:68
Back cavity
58
  T24/24-E 120.7 2-M16X1.5 43 2-M16X1.5 14.50 14 M16X1.5 300 245 0° 45° 62
  T30/30 120.7 2-M16X1.5 33 2-M16X1.5 14.50 14 M16X1.5 305 257 180° 45° 62
  Ld148
Mmiddie		 120.7 4-M16X1.5 36 3-M16X1.5 12.00 12 M16X1.5 81 53 45°

Bitmap

135°



57
  LD148-A
 120.7 2-M16X1.5 36 3-M16X1.5 12.00 12 M16X1.5 267
THE RELEASE TIGHTENS		 240

Bitmap

135°



45°
  ZM440
Mmiddie		 120 4-M16X1.5 35 2-Z3/8" 14.00 12 M18X1.5 390

BitmapBitmapBitmap

360



45°
  ZM440-A(Mmiddie) 120 4-M16X1.5 35 2-Z3/8" 14.00 12 M18X1.5 145 110 45°

BitmapBitmap

135°



65
  ZM440-B
 120 4-M16X1.5 35 2-Z1/4" 13.00 14 M18X1.5 143 110 45°

Bitmap

135°



64
  ZM440-D
 120 4-M16X1.5 35 2-Z1/4" 13.00 14 M18X1.5 145

Bitmap

110



45°
  T12 76.2 2-M16X1.5 38 2-M16X1.5 14.00 14X65 M16X1.5 / 200 90° 90°

Bitmap

68




  T16 76.2 2-M16X1.5 38 2-M16X1.5 14.00 14X65 M16X1.5 / 193 180° 45° 80
  T24-D 120.7 2-M16X1.5 38 2-M16X1.5 14.00 14X65 M16X1.5 LONG FORK 198 180° 45° 80
  T20-A 120.7 2-M16X1.5 38 2-M16X1.5 14.00 14X65 M16X1.5 LONG FORK 197 180° 45° 74
  T30-D 120.7 2-M16X1.5 　 2-M16X1.5 14.00 14X65 M16X1.5 LONG FORK 195 180° 45° 75
  16/24 120.7 2-M16X1.5 40 2-M16X1.5 　 　
BALL HEAD		 SR8
THE RELEASE TIGHTENS		 20 90° 270° 57
  20/24 120.7 2-M16X1.5 40 2-M16X1.5 15.00 14 M14X1.5 42/A POLE FORK BODY
THE RELEASE TIGHTENS		 　 0° 0° 56
  24/24-D 120.7 2-M16X1.5 40 2-M16X1.5 14.50 14 M16X1.5 220
THE RELEASE TIGHTENS		 210 90° 135° 64
  24/24 120.7 2-5/8-11unc 36 2-z3/8
 14.50 12.5 5/8-18UNF 301 270 90° 135°
Front cavity
64
Bback cavity
60
  24/30 120.7 2-M16X1.5 38 2-M16X1.5 14.50 14 M16X1.5 260
THE RELEASE TIGHTENS		 220 90° 135° 75
